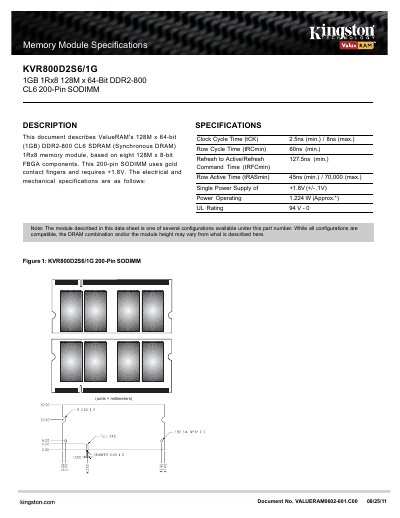

This is a KVR800D2S6/1G 1GB 1Rx8 128M x 64-Bit DDR2-800 CL6 200-Pin SODIMM memory module specification from ValueRAM
The KVR800D2S6/1G is a 1 GB DDR2‑800 CL6 200‑pin SODIMM memory module built from eight 128M × 8‑bit FBGA components. It uses gold contact fingers and operates from a single +1.8 V supply.
The datasheet lists key electrical parameters such as clock cycle time (2.5 ns – 8 ns), row cycle time (60 ns min), refresh to active time (127.5 ns min), row active time (45 ns – 70 µs), power consumption (≈1.224 W) and UL rating (94 V – 0).
| Clock Cycle Time (tCK) | 2.5ns (min.) / 8ns (max.) |
|---|---|
| Row Cycle Time (tRCmin) | 60ns (min.) |
| Refresh to Active/Refresh | 127.5ns (min.) |
| Row Active Time (tRASmin) | 45ns (min.) / 70,000 (max.) |
| Single Power Supply | +1.8V (+/- .1V) |
| Power Operating | 1.224 W (Approx.) |
| UL Rating | 94 V - 0 |
It requires a single +1.8 V supply with a tolerance of ±0.1 V.
The module consumes approximately 1.224 W of power.
The clock cycle time ranges from a minimum of 2.5 ns to a maximum of 8 ns.
