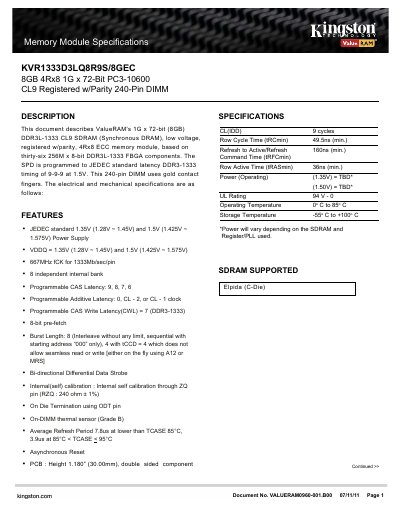

This document describes the features and characteristics of ValueRAM's 8GB DDR3L-1333 CL9 SDRAM (Synchronous DRAM) memory module, including low voltage, registered with parity, 4Rx8 ECC, etc.
The KVR1333D3LQ8R9S/8GEC is an 8 GB (1G × 72‑bit) DDR3L‑1333 memory module featuring registered ECC with parity. It is designed for server and workstation platforms that require high‑reliability memory.
Key features include JEDEC‑standard voltage options of 1.35 V and 1.5 V, a 667 MHz fCK clock for 1333 MT/s data rate, eight independent internal banks, programmable CAS latency (9‑6), and on‑DIMM thermal sensing. The module complies with standard mechanical dimensions (240‑pin, 30 mm height) and operates from 0 °C to 85 °C.
| Capacity | 8 GB (1G × 72‑bit) |
|---|---|
| Supply Voltage | 1.35 V (1.28‑1.45 V) and 1.5 V (1.425‑1.575 V) |
| Clock Frequency | 667 MHz fCK (1333 MT/s per pin) |
| CAS Latency | Programmable 9, 8, 7, 6 |
| Internal Banks | 8 independent banks |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
It supports JEDEC‑standard 1.35 V (1.28‑1.45 V) and 1.5 V (1.425‑1.575 V) supply voltages.
The module allows programmable CAS latencies of 9, 8, 7, or 6 cycles.
It provides 8 GB of memory, organized as 1 G × 72‑bit per rank.
The module operates from 0 °C up to 85 °C.
