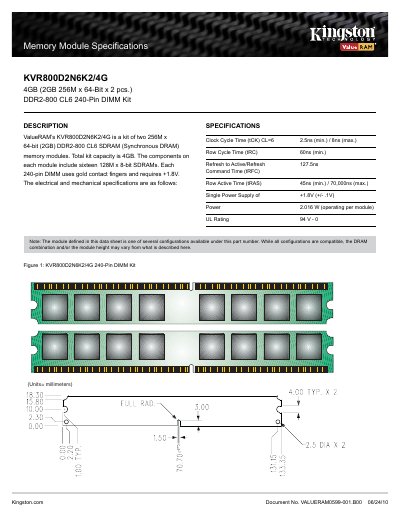

KVR800D2N6K2/4G is a ValueRAM memory module with a capacity of 4GB and DDR2-800 CL6 SDRAM technology.
The KVR800D2N6K2/4G ValueRAM kit consists of two 2 GB DDR2‑800 CL6 SDRAM modules, providing a total capacity of 4 GB. Each 240‑pin DIMM uses gold contact fingers and operates at a single +1.8 V power supply.
Key electrical and mechanical parameters are listed, including timing, power consumption, and UL rating, to aid system designers and integrators in ensuring compatibility and reliability. This manual is written in Chinese.
| Clock Cycle Time (tCK) CL=6 | 2.5 ns (min.) / 8 ns (max.) |
|---|---|
| Row Cycle Time (tRC) | 60 ns (min.) |
| Refresh to Active/Refresh | 127.5 ns |
| Row Active Time (tRAS) | 45 ns (min.) / 70,000 ns (max.) |
| Power Supply Voltage | +1.8 V (±0.1 V) |
| Power Consumption | 2.016 W per module (operating) |
| UL Rating | 94 V‑0 |
The kit provides a total capacity of 4 GB, consisting of two 2 GB modules.
Each module operates from a single +1.8 V power supply (±0.1 V).
