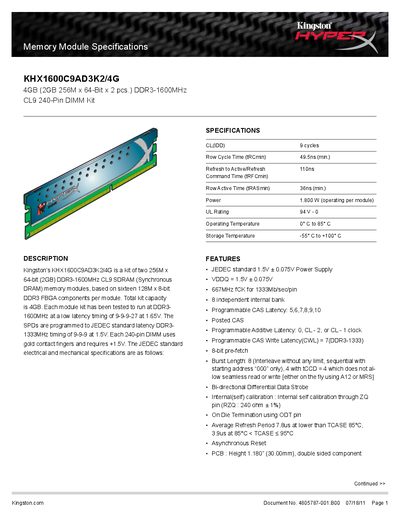

KHX1600C9AD3K2/4G 4GB (2GB 256M x 64-Bit x 2 pcs.) DDR3-1600MHz CL9 240-Pin DIMM Kit is a memory module from Kingston. It supports DDR3-1600MHz frequency with 9-9-9-27 timing and 1.65V voltage. It is built with 16 128M x 8-bit DDR3 FBGA components and has a total capacity of 4GB.
The KHX1600C9AD3K2/4G is a two‑module kit of 2 GB DDR3‑1600 MHz CL9 SDRAM DIMMs, designed for high‑performance desktop systems. Each 240‑pin DIMM uses gold contact fingers and operates at a nominal 1.5 V (plus 0.075 V) with a power draw of 1.800 W per module.
Key specifications include a total capacity of 4 GB, CAS latency of 9 cycles, operating temperature range of 0 °C to 85 °C, and storage temperature range of –55 °C to +100 °C. The modules measure 30.00 mm in height and conform to JEDEC standard electrical and mechanical requirements.
| Total kit capacity | 4 GB |
|---|---|
| Module type | 240‑Pin DIMM |
| Memory speed | DDR3‑1600 MHz |
| CAS latency | CL9 |
| Operating voltage | 1.5 V + 0.075 V |
| Power consumption | 1.800 W per module |
| Operating temperature | 0 °C to 85 °C |
| Storage temperature | -55 °C to +100 °C |
| Row cycle time (tRCmin) | 49.5 ns |
| Row active time (tRASmin) | 36 ns |
| Module height | 30.00 mm |
The kit provides a total capacity of 4 GB, consisting of two 2 GB modules.
Each module operates at 1.5 V plus 0.075 V and consumes 1.800 W of power.
The modules operate from 0 °C to 85 °C and can be stored from –55 °C to +100 °C.
The memory kit has a CAS latency of CL9.
