USP-10B Product Packaging Information and Reference Pattern Layout Dimensions

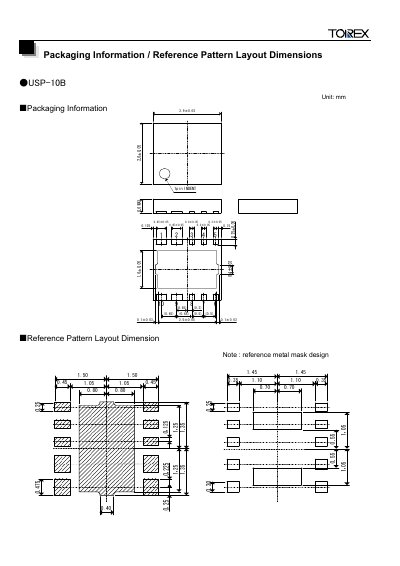

This document provides the packaging information for the Torex USP-10B, including detailed reference pattern layout dimensions. All measurements are expressed in millimetres.
The reference pattern layout includes metal mask design specifications and dimensional tables that aid in product assembly and quality control. This manual is written in Chinese.
| Unit | mm |
|---|---|
| Reference Pattern Layout Dimension | 150 × 150 mm, 1.45 × 1.45 mm |
All dimensions are given in millimetres.
It contains packaging information and reference pattern layout dimensions for the USP‑10B.
