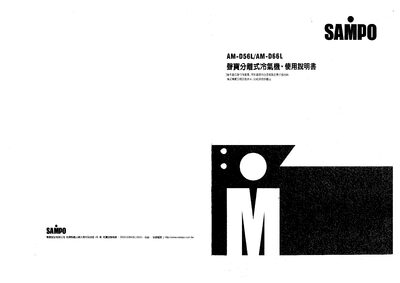

This manual covers safety guidelines, component identification, wiring, pipe installation, and detailed operating procedures for the AM-D56L and AM-D66L split‑type air‑conditioners. It includes step‑by‑step instructions for initial setup, remote‑control use, filter cleaning, and troubleshooting.
Additional sections describe recommended grounding wire sizes, pipe insulation, electrical wiring specifications, and test‑run procedures to ensure reliable performance and safe operation. This manual is written in Chinese.
| Grounding wire size | 2.5 mm² – 6.0 mm² |
|---|
Use a grounding wire of at least 2.5 mm² and no larger than 6.0 mm².
When the filter‑cleaning indicator light turns on (after about 100 hours of operation), clean the filter and reset the timer.
The indoor pipe length should not exceed 7 meters to avoid loss of cooling capacity.
Install the indoor unit at a height of at least 2.5 meters above the floor to prevent accidental contact by children.
