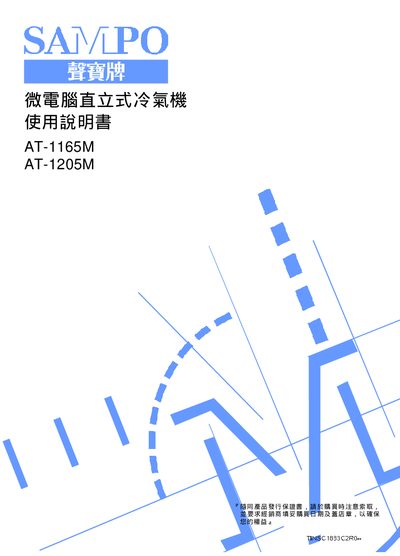

AT-1165M / AT-1205M Air Conditioner User Manual

This document is a user manual for the Microcomputer Vertical Air Conditioner, including the features and usage precautions of the product.

Brand: Sampo
Category: Air conditioner
Document type: User Manual
Language: Chinese
Pages: 14
File format: PDF
File size: 171 KB
Published: 19 March, 2012
Updated: 29 September, 2023
MD5 checksum: 6E89F18C96A85DFD3A81FA40826B9716
PDF: AT-1165M / AT-1205M Air Conditioner User Manual PDF

About this manual

This manual explains safety precautions, required clearances and wiring for the straight‑stand air‑conditioner models AT-1165M and AT-1205M. It covers power‑line connections, grounding, IP ratings and recommended installation distances.

The guide also describes the control panel functions, temperature settings, timer features, cleaning and filter maintenance, as well as troubleshooting steps and fault codes to help restore normal operation. This manual is written in Chinese.

What's inside

Safety Precautions
Installation Requirements
Power and Grounding
Control Panel Functions
Operation Instructions
Cleaning and Maintenance
Troubleshooting
Fault Diagnosis

Specifications

Indoor IP rating	IP0
Outdoor IP rating	IP4
Cooling side temperature range	21 °C – 32 °C
Recommended installation clearance	75 – 150 cm

Frequently asked questions

What clearance distance is required for installing the unit?

The unit should be installed with a clearance of 75 – 150 cm from the floor.

What are the IP ratings for the indoor and outdoor sides?

The indoor side has an IP rating of IP0, while the outdoor side is rated IP4.

How does the protection circuit reset after it stops the unit?

After a protection stop, the circuit automatically restarts after 3 minutes.
