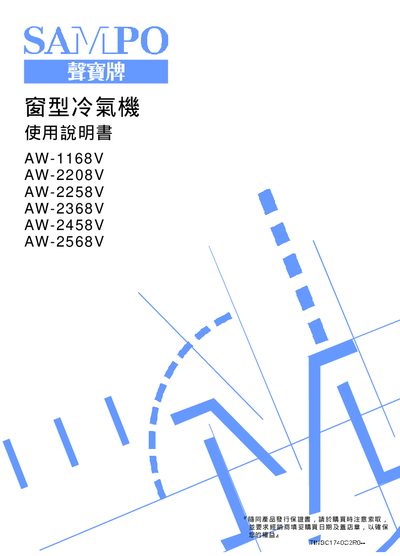

This is the window air conditioner AW-1168V AW-2208V AW-2258V AW-2368V AW-2458V AW-2568V user manual, which contains the names and functions of each part, the operating sequence of the air conditioner, the microcomputer controller indicator lights, the button names, the function description, the wireless remote control operation, the wind direction adjustment function, and the safety regulations.
This manual explains how to operate the Sampo AW series split‑type air‑conditioners, covering controller functions, remote control usage, temperature setting, wind‑direction adjustment and timer features. Detailed step‑by‑step instructions are provided for powering the unit on and off, selecting modes such as cooling, de‑humidifying and fan‑only, and configuring optional functions like sleep mode.
Safety and installation guidelines are also included. The document specifies required electrical supply, grounding wire sizes, minimum clearances for outdoor units, recommended mounting height, and precautions for long‑term storage. Troubleshooting tips address common fault symptoms and advise when to contact service centers. This manual is written in Japanese.
| Maximum hot‑side operating temperature | 43 °C |
|---|---|
| Minimum hot‑side operating temperature | 21 °C |
| Minimum cold‑side operating temperature | 21 °C |
| Minimum outdoor unit clearance | 40 cm |
Adjust the guide vane up or down manually, or use the <風向調整> function via the controller to change airflow direction.
Remove the battery from the remote control and disconnect the power supply before storing the unit.
