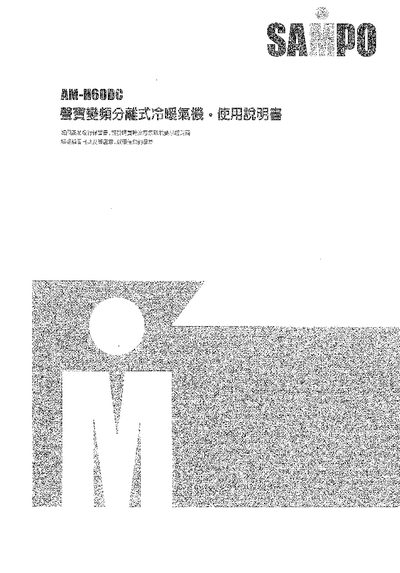

Sampo AM-H60DC Heating and Cooling Gas Machine User Manual

About this manual

This manual covers safety specifications, pre‑use precautions, and detailed descriptions of each component and its function. It also explains the LCD controller, temperature settings, and how to operate the device in both heating and cooling modes.

Installation instructions include pipe routing, electrical wiring, grounding requirements, and final testing. The document finishes with a troubleshooting guide, service information, and a full specification table for the indoor and outdoor units. This manual is written in Chinese.

What's inside

• Safety Guidelines
• Pre‑use Precautions
• Component Identification
• LCD Controller Overview
• Temperature Settings
• Room Heating/Cooling Operation
• Additional Functions
• Wind Direction Adjustment
• Installation and Wiring
• Troubleshooting and Service

Specifications

Frequently asked questions

What type of wire should be used for grounding?

Use a 2.0 mm² wire for the grounding connection.

What is the indoor operating temperature range?

The indoor temperature can be set between a maximum of 32 °C and a minimum of 21 °C.

How do I set or cancel the timer function?

Press the timer button to set the timer; press again to cancel.

What minimum clearance is required for pipe installation?

Maintain at least 15 cm clearance from obstacles when installing the pipe.
