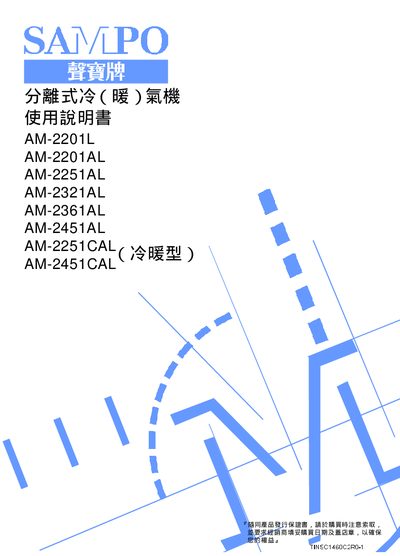

This user manual is for the AM-2201L/AL/2251AL/2321AL/2361AL/2451AL/2251CAL/2451CAL split air conditioner. It mainly includes installation, operation, and maintenance instructions.
This manual explains how to install the AM-2201L unit, including power‑line selection, grounding requirements, and maximum pipe length. It also details safety precautions such as avoiding use in wet locations and proper handling of the power cord.
Operating instructions cover control panel functions, remote‑control usage, temperature setting ranges, and maintenance alerts for air‑filter and refrigerant cleaning. Technical specifications such as pressure limits and temperature ranges are listed for reference. This manual is written in Chinese.
| Maximum suction pressure | 6 kg/cm² |
|---|---|
| Hot‑side operating temperature range | 21 °C – 43 °C |
| Cold‑side operating temperature range | 21 °C – 32 °C |
| Maximum pipe length | 7 m |
| Power‑cord cross‑section | 3.5 mm² or 2.0 mm² single copper conductor |
| Grounding wire size | ≥2.5 mm², ≤6.0 mm² |
The pipe length must not exceed 7 meters.
Hot side: 21 °C – 43 °C; Cold side: 21 °C – 32 °C.
Use a power cord with a cross‑section of 3.5 mm² or 2.0 mm² single copper conductor, and a grounding wire of at least 2.5 mm² but not larger than 6.0 mm².
