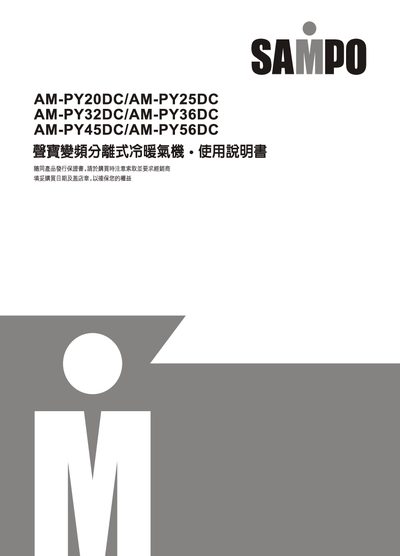

Sampo AM-PY20DC/AM-PY25DC/AM-PY32DC/AM-PY36DC/AM-PY45DC/AM-PY56DC Heating and Cooling Gas Machine User Manual

Brand: Sampo
Category: Air conditioner
Document type: User Manual
Language: Japanese
Pages: 24
File format: PDF
File size: 18.4 MB
Published: 19 March, 2012
Updated: 19 April, 2012
MD5 checksum: A97F59916D209E686A4F540CE3074563
PDF: Sampo AM-PY20DC/AM-PY25DC/AM-PY32DC/AM-PY36DC/AM-PY45DC/AM-PY56DC Heating and Cooling Gas Machine User Manual PDF

About this manual

This manual covers safety regulations, required precautions before use, and detailed instructions for installing the indoor and outdoor units of the Sampo AM-PY heating and cooling gas machines. It explains recommended installation height, wiring requirements, pipe connections, and initial test procedures.

The guide also describes how to operate cooling and heating modes, adjust fan speed and direction, set timers and sleep functions, perform routine maintenance, and troubleshoot common issues. Technical specifications for each model are listed at the end of the document. This manual is written in Japanese.

What's inside

Safety Guidelines
Precautions Before Use
Component Functions
LCD Controller Functions
Temperature Settings
Cooling and Heating Operation
Main Functions
Timer Settings
Sleep Mode Settings
Additional Functions

Specifications

Rated Power (kW) – AM-PY20DC	3.1 kW
Rated Current (A) – AM-PY20DC	4.4 A
Indoor Unit Dimensions (W×H×D) – AM-PY20DC	810×295×210 mm
IP Rating (Indoor/Outdoor)	IPX0 / IPX4

Frequently asked questions

What is the recommended installation height for the indoor unit?

The indoor unit should be installed at a height of about 2.5 m.

What IP ratings do the indoor and outdoor sides have?

The indoor side has an IPX0 rating and the outdoor side has an IPX4 rating.

What are the operating temperature limits for cooling mode?

For cooling, the outdoor temperature range is 21 °C – 43 °C and the indoor range is 21 °C – 32 °C.
