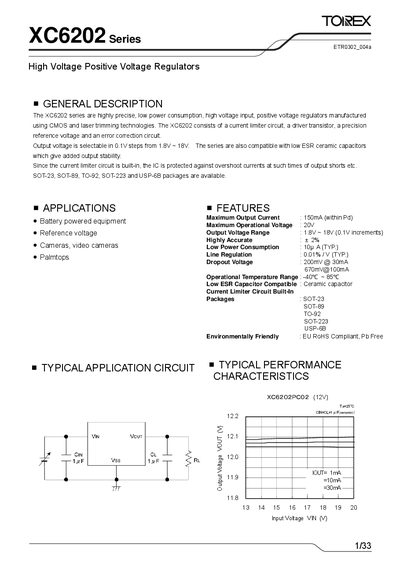

The XC6202 series is a highly precise, low power consumption, high voltage input, positive voltage regulator manufactured using CMOS and laser trimming technologies. It consists of a current limiter circuit, a driver transistor, a precision reference voltage, and an error correction circuit. The output voltage can be selected in 0.1V steps from 1.8V to 18V. The series is also compatible with low ESR ceramic capacitors, providing added output stability. The IC is protected against overshoot currents in cases of output shorts due to the built-in current limiter circuit. Available in SOT-23, SOT-89, TO-92, SOT-223, and USP-6B packages.
The XC6202 series are high‑precision, low‑power, high‑voltage input positive voltage regulators built with CMOS and laser‑trimming technology. Output voltage is selectable in 0.1 V steps from 1.8 V to 18 V, and the devices include built‑in current limiting and low‑ESR ceramic capacitor compatibility for stable operation.
Key features include a maximum output current of 150 mA, dropout voltage as low as 200 mV at 30 mA, operation over –40 °C to 85 °C, and availability in multiple packages such as SOT‑23, SOT‑89, TO‑92, SOT‑223 and USP‑6B. The datasheet details absolute maximum ratings, electrical characteristics, pin assignments, and marking rules.
| Output Voltage Range | 1.8 V ~ 18 V (0.1 V increments) |
|---|---|
| Dropout Voltage (30 mA) | 200 mV |
| Maximum Input Voltage | 22 V |
| Package Types | SOT‑23, SOT‑89, TO‑92, SOT‑223, USP‑6B |
The output voltage can be set from 1.8 V to 18 V in 0.1 V steps.
The dropout voltage is specified as 200 mV at a 30 mA load.
