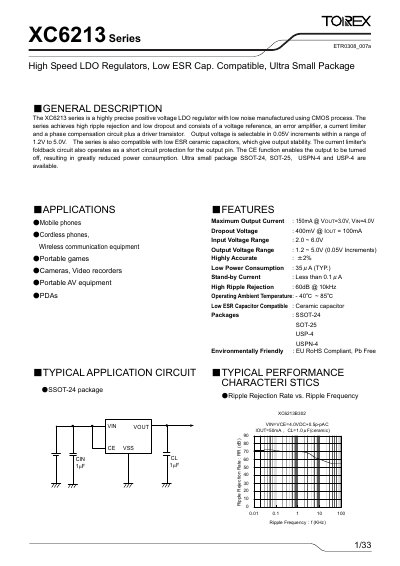

The XC6213 series is a highly precise positive voltage LDO regulator with low noise manufactured using CMOS process. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. Output voltage is selectable in 0.05V increments within a range of 1.2V to 5.0V. The series is also compatible with low ESR ceramic capacitors, which give output stability. The current limiter's foldback circuit also operates as a short circuit protection for the output pin. The CE function enables the output to be turned off, resulting in greatly reduced power consumption. Ultra small package SSOT-24, SOT-25, USPN-4 and USP-4 are available.
The XC6213 Series is a highly precise positive‑voltage LDO regulator with low noise, offering selectable output voltages in 0.05 V steps from 1.2 V to 5.0 V. It includes a voltage reference, error amplifier, current limiter with fold‑back protection, and a phase‑compensation circuit, and it can be powered from 2.0 V to 6.0 V.
Key specifications include a maximum output current of 150 mA, dropout voltage of 400 mV at 100 mA, ripple rejection of 60 dB at 10 kHz, and operation over –40 °C to 85 °C. The device is offered in ultra‑small packages (SSOT‑24, SOT‑25, USP‑4, USPN‑4) and is RoHS‑compliant.
| Maximum Output Current | 150 mA @ VOUT=3.0 V, VIN=4.0 V |
|---|---|
| Dropout Voltage | 400 mV @ IOUT=100 mA |
| Input Voltage Range | 2.0 V – 6.0 V |
| Output Voltage Range | 1.2 V – 5.0 V (0.05 V increments) |
| Voltage Accuracy | ±2 % |
| Typical Supply Current | 35 µA |
| Stand‑by Current | <0.1 µA |
| Ripple Rejection | 60 dB @ 10 kHz |
| Operating Temperature | -40 °C to 85 °C |
| Package Types | SSOT‑24, SOT‑25, USP‑4, USPN‑4 |
The output voltage can be set from 1.2 V to 5.0 V in 0.05 V increments.
It can supply up to 150 mA at VOUT = 3.0 V with VIN = 4.0 V.
The regulators are offered in SSOT‑24, SOT‑25, USP‑4, and USPN‑4 packages.
The dropout voltage is 400 mV when the output current is 100 mA.
