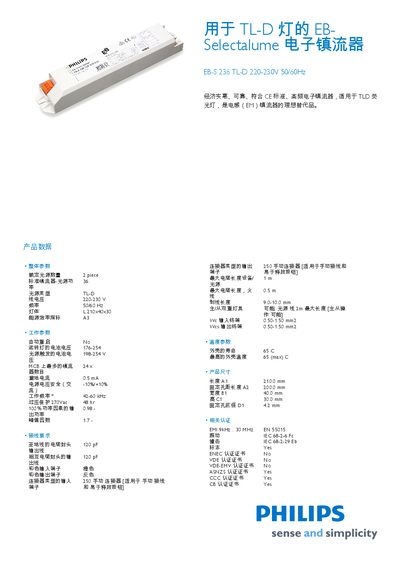

The EB-S 236 TL-D 220-230V 50/60Hz electronic ballast is an economical, reliable, CE-compliant high-frequency electronic ballast that is suitable for TLD fluorescent lamps and is an ideal replacement for inductive (EM) ballasts.
This manual describes the Philips EB‑S 236 TL‑D lighting fixture, a 220‑230 V, 50/60 Hz product designed for indoor illumination. It includes overall parameters, operating limits, wiring requirements, and safety information.
The document also lists dimensional data, temperature limits, compliance certifications, and packaging details, helping installers and users correctly set up and maintain the fixture. This manual is written in Chinese.
| Power Factor | 100 % (unity) |
|---|---|
| Maximum External Temperature | 65 °C (max) |
| Dimensions (L×W×H) | 210 mm × 40 mm × 30 mm |
| EMI Compliance Range | 9 kHz – 30 MHz (EN55015) |
| ASNZS Certification | Yes |
The maximum external temperature is 65 °C.
The fixture measures 210 mm in length, 40 mm in width, and 30 mm in height.
