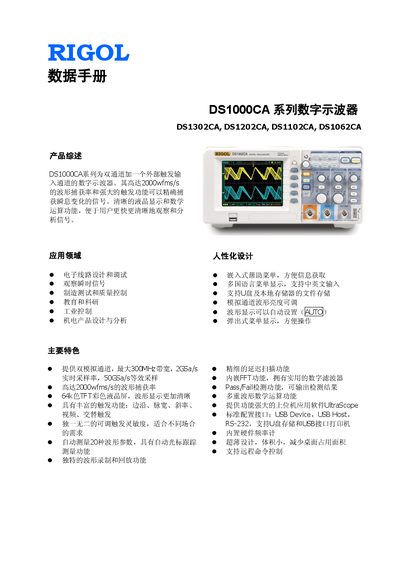

RIGOL DS1000CA series digital oscilloscope is a dual-channel oscilloscope with an additional external trigger input channel. It features a maximum bandwidth of 300MHz, a real-time sampling rate of 2GSa/s, and a waveform capture rate of 2000wfms/s. It is suitable for applications in electronic circuit design and debugging, manufacturing testing and quality control, education and research, etc.
The DS1000CA series is a dual‑channel digital oscilloscope with an external trigger input, offering up to 2000 wfms/s waveform capture rate, 64k‑color TFT display, and a rich set of trigger functions including edge, pulse‑width, slope, video and alternate modes. It includes 20 automatic measurement parameters, waveform recording/replay up to 1000 frames, and built‑in FFT and digital filtering.
Technical specifications cover bandwidths from 60 MHz to 300 MHz, equivalent sampling rates up to 50 GS/s, real‑time sampling up to 2 GSa/s, memory depth up to 10 k points per channel, and a power consumption under 50 W. The unit supports USB, RS‑232, and optional external storage, and includes a PC‑based analysis software (UltraScope). This manual is written in Chinese.
| Bandwidth | 300 MHz (DS1302CA) |
|---|---|
| Equivalent Sampling Rate | 50 GS/s (DS1302CA) |
| Real‑time Sample Rate | 2 GSa/s |
| Maximum Sample Points per Channel | 10 k points |
| Display | 5.7‑inch TFT, 64k colors |
It supports edge, pulse‑width, slope, video, and alternate trigger modes.
The oscilloscope provides 20 automatic measurement parameters.
Yes, it can record up to 1000 frames on two channels and replay or save them for analysis.
The device operates from 10 °C to 40 °C.
