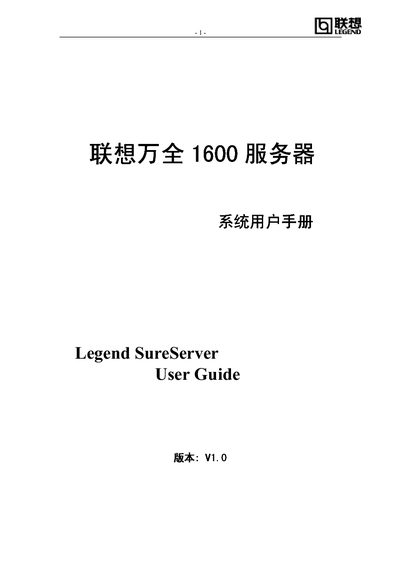

This manual introduces the Lenovo ThinkServer 1600 server, covering its product features, technical specifications, and system architecture. It guides users through hardware installation, chassis handling, and expansion options.
Detailed sections cover BIOS/POST procedures, operating system installation for Windows, Linux, and NetWare, safety precautions, and warranty information. The document is intended for qualified technicians and system administrators. This manual is written in Chinese.
| CPU | Intel Pentium III FC-PGA 866/1000MV/1.13GHz |
|---|---|
| Cache | 256KB L2 cache |
| Maximum Memory | 1.5 GB PC133 ECC SDRAM |
| Front‑Side Bus | 133 MHz |
| IDE Controller | ATA 66/100 |
| SCSI Controller | Ultra 160 SCSI |
| Hard‑Drive Bays | 4 internal bays |
| Graphics | Integrated ATI graphics controller |
| CD‑ROM | 48× IDE drive |
| Floppy Drive | 1.44 MB |
| Power Supply | 300 W, 220 V 50 Hz |
| Dimensions | 470 mm × 210 mm × 505 mm |
| PCI Slots | 5 PCI slots |
| ISA Slots | 1 ISA slot |
| USB Ports | 2 USB ports |
It provides five PCI expansion slots.
The server can be equipped with up to 1.5 GB of PC133 ECC SDRAM.
