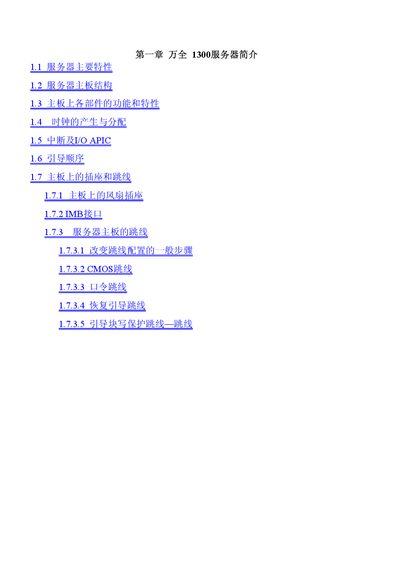

This manual introduces the functions and usage of the main board of the Wanquan 1300 server, including the main board structure, component functions, clock generation and allocation, interrupts and I/O APIC, boot sequence, and main board sockets and jumpers.
The Lenovo ThinkServer 1300 server manual provides a detailed description of the motherboard features, supported CPUs, memory modules, storage interfaces and expansion slots. It also includes instructions for BIOS updates and system configuration.
The document lists component specifications such as supported Pentium II processors, up to 768 MB of SDRAM, integrated SCSI and Ethernet controllers, IDE channels, and multiple PCI/ISA slots, helping administrators configure and maintain the server. This manual is written in Chinese.
| Supported CPU | Pentium II 350 MHz / 400 MHz, external bus 100 MHz |
|---|---|
| Maximum Memory | 768 MB SDRAM DIMM |
| Memory Slots | 3 × 168‑pin SDRAM DIMM slots (ECC or non‑ECC) |
| Ethernet Controller | 10/100 Mbps integrated Ethernet |
| IDE Channels | 2 × Ultra DMA/33 IDE channels (max 14 MB/s) |
| PCI Slots | 4 × 32‑bit PCI slots, plus ISA/PCI shared slots |
| BIOS Update Method | Use FLASH.EXE with BIOS file |
The server supports Pentium II processors running at 350 MHz or 400 MHz with a 100 MHz external bus.
Up to 768 MB of SDRAM DIMM can be installed in the three memory slots.
Download the BIOS file and run the FLASH.EXE utility as described in the manual.
The board includes an integrated SCSI controller, two Ultra DMA/33 IDE channels, and a standard IDE connector.
