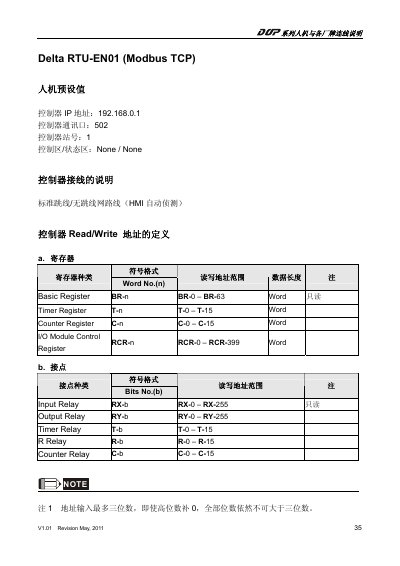

This document introduces the preset values, controller IP address, controller communication port, controller station number, controller wiring instructions, controller Read/Write address definition of Delta RTU-EN01 (Modbus TCP) human machine.
This document describes the Delta RTU-EN01 human‑machine interface controller, including its default IP address (192.168.0.1), Modbus TCP port (502) and station number (1). It also explains the wiring options and the automatic HMI detection mode.
Detailed tables list the read/write address ranges for basic registers, timer registers, counter registers, I/O module control registers, and the various relay contacts. The Modbus address mapping for each register type is also provided. This manual is written in Chinese.
| Default IP address | 192.168.0.1 |
|---|---|
| Modbus TCP port | 502 |
| Station number | 1 |
| Basic Register range | BR-0 – BR-63 |
| Timer Register range | T-0 – T-15 |
| Counter Register range | C-0 – C-15 |
| I/O Module Control Register range | RCR-0 – RCR-399 |
| Input Relay range | RX-0 – RX-255 |
| Output Relay range | RY-0 – RY-255 |
| Timer Relay range | T-0 – T-15 |
| R Relay range | R-0 – R-15 |
| Counter Relay range | C-0 – C-15 |
The controller’s default IP address is 192.168.0.1.
It uses port 502 for Modbus TCP.
Basic registers range from BR‑0 to BR‑63, providing 64 registers.
Input relays are addressed from RX‑0 to RX‑255.
