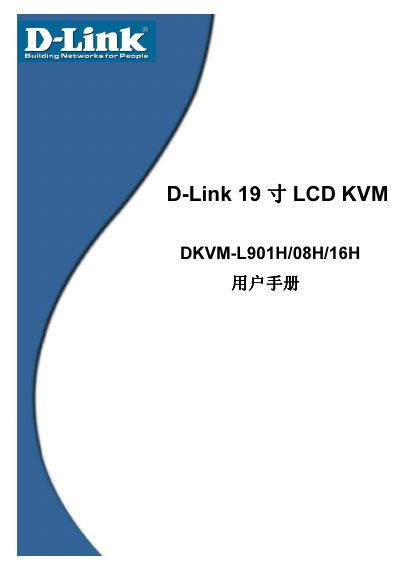

This manual introduces the features and characteristics of the D-Link 19 inch LCD KVM DKVM-L901H/08H/16H, including an overview, basic features, front panel functions, rear panel functions, connection lines, installation, maintenance and maintenance.
The D-Link DKVM-L901H/08H/16H series integrates a 19‑inch LCD display, keyboard and mouse into a single KVM switching platform. The manual describes the product’s features, supported operating systems, dimensions, and cable connections.
Installation steps, operating procedures, common fault handling, maintenance tips, and a full accessories list are included, along with environmental and safety guidelines for rack‑mount deployment. This manual is written in Chinese.
| Resolution | 1280 × 1024 @ 75 Hz |
|---|---|
| Brightness | 200–250 cd/m² |
| Contrast ratio | 600:1 |
| Power input | DC 12 V 5 A |
| Power consumption | 28 W |
| Keyboard lifespan | >1 000 000 keystrokes |
| Mouse touchpad buttons | 2 buttons |
| Mouse touchpad lifespan | >1 000 000 clicks |
| Operating temperature | 0 °C – 60 °C |
| Storage temperature | -20 °C – 65 °C |
| Operating humidity | 5 % – 90 % |
Connect the 15‑pin male end to the server’s VGA, keyboard and mouse ports, and the 15‑pin female end to the KVM’s VGA port. Secure both ends with the supplied screws.
