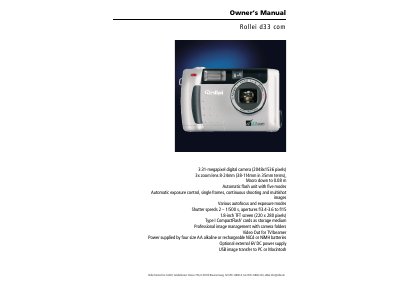

This document is the user manual for Rollei d33 com, which introduces the features and characteristics of the camera.
This manual explains how to set up and safely use the Rollei d33 com digital camera, covering battery installation, memory‑card handling, and basic safety warnings. It also describes the camera's controls, shooting modes, and playback functions.
Detailed sections guide you through focusing, exposure control, flash use, connecting to a PC via USB, and troubleshooting common problems such as focus errors or battery issues. The document includes specifications, care instructions for the TFT screen, and service information.
| Megapixels | 3.31 MP |
|---|---|
| Maximum image resolution | 2048 x 1536 pixels |
| Zoom lens | 3x zoom, 8‑24 mm (38‑114 mm equivalent) |
| Shutter speed range | 2 s – 1/500 s |
| Aperture range | f/3.4‑3.6 to f/15 |
| LCD screen | 1.8‑inch TFT, 220 × 280 px |
| Storage medium | Type I CompactFlash cards |
| Power source | Four AA alkaline or rechargeable NiCd/NiMH batteries (optional 6 V DC supply) |
| Video output | Video Out for TV/beamer |
| USB transfer | USB image transfer to PC or Macintosh |
Open the battery compartment, insert the four AA alkaline or NiCd/NiMH batteries with the correct polarity (+/‑) as marked, and close the cover.
