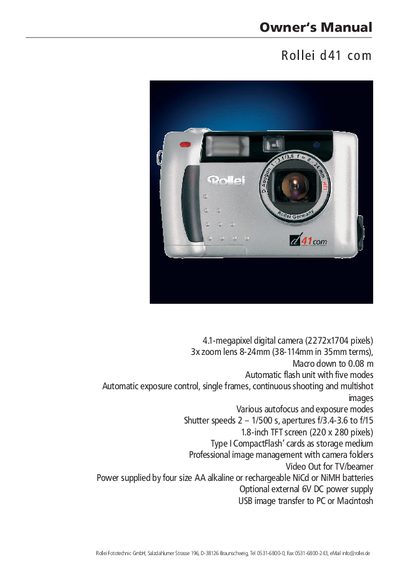

This document is the user manual of Rollei d41 com digital camera, which introduces the functions and characteristics of the camera, operating methods, etc.
This manual covers everything you need to know to use the Rollei d41 com digital camera safely and effectively. It includes safety warnings, a checklist of supplied items, and detailed descriptions of the camera's controls, lenses, and accessories.
The guide also explains how to manage power, insert CompactFlash cards, connect to a PC or Mac via USB, adjust shooting settings, and troubleshoot common problems. Technical specifications and system requirements are listed at the end of the document.
| Image sensor | 1/1.8-inch CCD (4:3) with 3.87 MP (1704 × 2272) |
|---|---|
| Lens | 3× zoom, 8‑24 mm f/3.4‑3.6 |
| Shutter speed range | 2 s – 1/500 s |
| Storage medium | Type I CompactFlash card |
| Battery type | Four AA alkaline or rechargeable NiCd/NiMH batteries |
| LCD screen | 1.8‑inch TFT color LCD, 220 × 220 px |
| Video output | Composite PAL, 220‑line horizontal resolution |
| Dimensions (W × H × D) | 116 × 73 × 62 mm |
| Weight | ≈ 280 g (without batteries and CF card) |
The camera uses four size AA alkaline batteries or rechargeable NiCd/NiMH batteries.
It accepts a Type I CompactFlash card as the storage medium.
Use the USB cable to connect the camera’s USB terminal to a PC or Macintosh.
The fastest shutter speed is 1/500 second.
