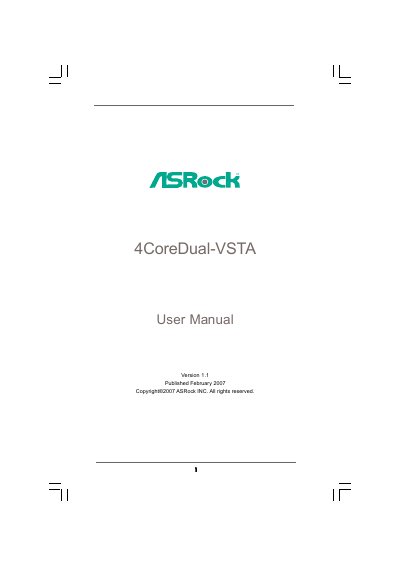

This manual introduces the ASRock 4CoreDual-VSTA ATX motherboard, lists package contents, and outlines the hardware specifications such as CPU socket, memory types, expansion slots, audio, LAN and storage interfaces. It also includes safety cautions and regulatory notices.
The guide walks users through pre‑installation precautions, CPU and heatsink mounting, memory module installation, connector setup, BIOS setup utility, and software support including driver and utility installation from the support CD. Additional sections cover boot configuration, security settings, and contact information. This manual is written in Chinese.
| Form Factor | ATX (12.0" x 9.6") |
|---|---|
| CPU Socket | LGA 775 supporting Intel Core 2, Pentium, Celeron and Quad‑Core Kentsfield |
| Memory | 2 DDRII DIMM slots (DDRII667/533, max 2 GB) and 2 DDR DIMM slots (DDR400/333/266, max 2 GB) |
| Audio Codec | ALC888 7.1‑channel HD audio |
| LAN | VIA PHY VT6103, 10/100 Ethernet |
| SATA Connectors | 2 Serial ATA 1.5 Gb/s connectors with RAID and Hot‑Plug support |
The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.
It accepts LGA 775 CPUs such as Intel Core 2 Extreme, Core 2 Duo, Pentium Xe, Pentium D, Pentium 4, Celeron D and Quad‑Core Kentsfield processors.
The board provides two DDRII DIMM slots (DDRII667/533, up to 2 GB) and two DDR DIMM slots (DDR400/333/266, up to 2 GB).
