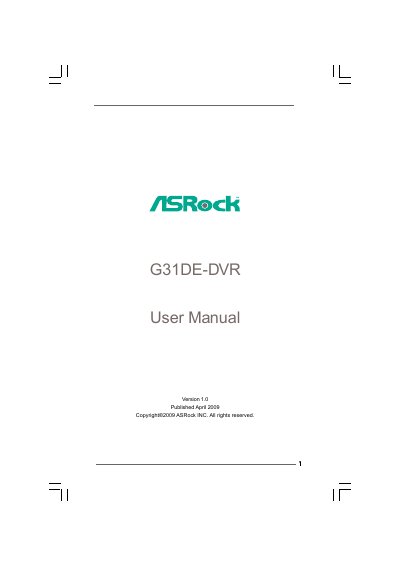

This document is the user manual for G31DE-DVR, published by ASRock INC. in April 2009. All rights reserved by ASRock INC. The manual provides specifications and information about the product, but ASRock does not provide any warranty and is not responsible for any errors or omissions in the manual.
This manual introduces the ASRock G31DE-DVR motherboard, describing its features, specifications, and the procedures needed to install and configure the board. It includes safety notices, warranty information, and guidance for overclocking and power management.
The document is organized into sections covering package contents, detailed specifications, motherboard layout, step‑by‑step installation, BIOS setup utility, and software support. It also provides instructions for configuring security settings, boot options, and troubleshooting common issues.
| Form Factor | ATX (12.0‑in x 7.5‑in) |
|---|---|
| CPU Socket | LGA 775 for Intel Core2, Pentium Dual Core, Celeron Dual Core, etc. |
| Chipset | Northbridge Intel G31, Southbridge Intel ICH7 |
| Expansion Slots | 1 PCI‑Express x16, 5 PCI slots |
| LAN | Gigabit LAN (Realtek RTL8111DL) 10/100/1000 Mb/s |
The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
There are four SATAII 3.0 Gb/s connectors (no RAID or hot‑plug support).
In the Security screen of the BIOS Setup Utility you can set or change the supervisor and user passwords, and also clear them.
