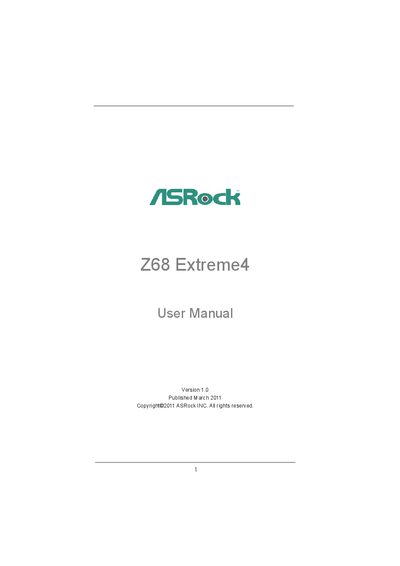

ASRock Z68 Extreme4 User Manual

This document is the user manual for ASRock Z68 Extreme4 motherboard, describing the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 81
File format: PDF
File size: 1.4 MB
Published: 14 March, 2012
Updated: 29 September, 2023
Model: Z68
MD5 checksum: 5B4159A016A727693E97A8055A6DDC25
PDF: ASRock Z68 Extreme4 User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock Z68 Extreme4 motherboard, including package contents, CPU and memory installation, expansion slots, and I/O panel connections. Detailed instructions are provided for BIOS/UEFI setup, RAID configuration, and operating system installation on large‑capacity drives.

Additional sections describe the motherboard’s unique features such as the Extreme Tuning Utility, Smart Switches, and support for multi‑GPU technologies (CrossFireX, SLI). The document also includes troubleshooting notes, driver installation guidance, and contact information for technical support.

What's inside

Package Contents
Specifications
Motherboard Layout
I/O Panel
Installation
UEFI Setup Utility
Software Support
Installing OS on a HDD Larger Than 2TB

Specifications

Form Factor	ATX (12.0‑in x 9.6‑in)
Chipset	Intel® Z68
SATA3 Connectors	2 x 6 Gb/s SATA3 ports

Frequently asked questions

How many SATA3 connectors does the Z68 Extreme4 have?

The motherboard provides two SATA3 6.0 Gb/s connectors.

What key opens the UEFI/BIOS setup on this board?

Press or during system POST to enter the UEFI Setup Utility.

Which BIOS setting is required for installing Windows 7 on a large HDD?

Set the SATA Mode to AHCI in the UEFI Setup Utility under Advanced → Storage Configuration.

What is the maximum supported system memory?

The board supports up to 32 GB of DDR3 memory.
