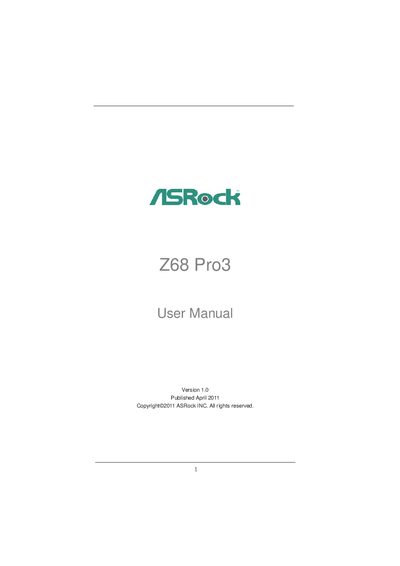

This is a user manual for ASRock INC.'s Z68 Pro3, providing information on the features and characteristics of the product.
This manual introduces the ASRock Z68 Pro3 motherboard, its features, and the contents of the support package. It includes safety notices, warranty information, and an overview of the board layout and connectors.
The document is organized into sections covering package contents, detailed specifications, installation procedures (CPU, memory, expansion slots, SATA, USB, etc.), UEFI BIOS setup, driver installation, and operating system installation guidance. It also lists hardware health monitoring, unique ASRock utilities, and compliance certifications.
| CPU Support | 2nd Generation Intel Core i7/i5/i3 LGA1155 |
|---|---|
| Chipset | Intel Z68 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| SATA3 Connectors | 2 × 6 Gb/s SATA3 ports |
| USB 3.0 Ports | 2 ports (Etron EJ168A) |
| LAN Controller | Realtek RTL8111E Gigabit Ethernet |
The motherboard provides two SATA3 6 Gb/s connectors.
It can support up to 32 GB of DDR3 memory.
The board uses a Realtek RTL8111E Gigabit LAN controller.
Windows 7, Windows Vista, and Windows XP (both 32‑ and 64‑bit) are supported.
