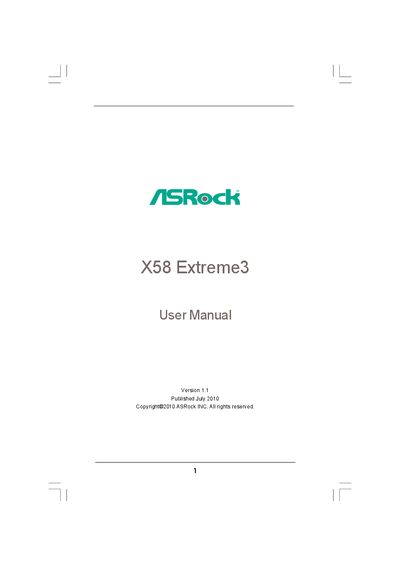

X58 Extreme3 User Manual
This manual covers everything needed to set up the ASRock X58 Extreme3 motherboard, including package contents, hardware installation, BIOS setup, and software support. It also lists detailed specifications and connector layouts.
The guide explains how to install the CPU, memory, storage devices, and expansion cards, and provides instructions for configuring the BIOS, using the support CD, and troubleshooting common issues.
| Form factor | ATX (12.0" x 9.6") |
|---|---|
| CPU socket | Intel Socket 1366 |
| Northbridge chipset | Intel X58 |
| Southbridge chipset | Intel ICH10R |
| Memory slots | 6 DDR3 DIMM slots |
| Maximum memory capacity | 24 GB |
| PCI Express slots | 2 × PCIe 2.0 x16, 1 × PCIe x16 (x4), 1 × PCIe x1, 2 × PCI |
| Audio | 7.1‑channel HD audio with content protection |
| LAN | Gigabit Ethernet (10/100/1000 Mb/s) Realtek RTL8111DL |
| SATA3 ports | 2 × 6 Gb/s SATA3 connectors |
| USB 3.0 ports | 2 × USB 3.0 ports |
| BIOS | 8 Mb AMI BIOS |
It uses an Intel Socket 1366.
The board includes two USB 3.0 ports.
The motherboard supports up to 24 GB of system memory.
It uses an Intel X58 northbridge and an Intel ICH10R southbridge.
