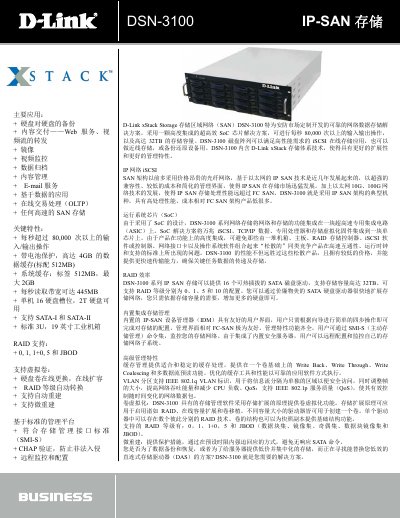

DSN-3100 IP-SAN Storage main applications: disk-to-disk backup, content delivery, mirroring, video surveillance, data archiving, content management, E-mail services, data-driven applications, online transaction processing (OLTP), any high-speed SAN storage. Key features: over 80,000 I/O operations per second, battery protection, up to 4GB data cache (512MB standard), system cache up to 2GB, read bandwidth up to 445MB/s, 16 drive bays, support for SATA-I and SATA-II, standard 3U, 19-inch industrial chassis. RAID support: 0, 1, 1+0, 5, and JBOD. Supports virtual volumes, based on standard management platform, compliant with Storage Management Initiative Specification (SMI-S), CHAP authentication for preventing unauthorized access, remote monitoring and configuration.
The DSN-3100 is a 3U, 19‑inch rack‑mount IP‑SAN storage system designed for surveillance and high‑speed data applications. It integrates a highly efficient SoC that delivers over 80,000 IOPS and up to 445 MB/s read bandwidth, supporting up to 32 TB of storage across 16 hot‑swap SATA drives.
The device offers comprehensive management via an integrated web interface, SMI‑S support, VLAN and QoS features, and advanced cache management. It includes redundant 500 W power supplies, fan speed control, and extensive OS compatibility, making it suitable for enterprise environments requiring reliable, scalable storage. This manual is written in Chinese.
| IOPS | 80,000 per second |
|---|---|
| Maximum Read Throughput | 445 MB/s |
| Drive Bays | 16 hot‑swap SATA slots |
| Supported RAID Levels | 0, 1, 1+0, 5, 10, JBOD |
| System Cache | Up to 2 GB |
| Data Cache | Up to 4 GB (battery protected) |
| Maximum Storage Capacity | 32 TB |
| Host Interface | 4×1000BASE‑T |
| Power Supply | Redundant 500 W ×2 |
| Dimensions | 3U, 13.2 cm H × 44 cm W × 54.8 cm L |
It supports RAID 0, 1, 1+0, 5, 10 and JBOD.
The system provides 16 hot‑swap SATA drive bays.
The device can handle over 80,000 I/O operations per second.
