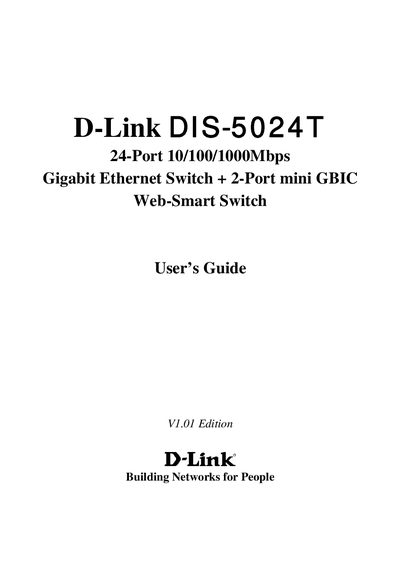

This document describes the features and characteristics of the D-Link DIS-5024T 24-Port Gigabit Ethernet Switch.
This guide explains how to install and set up the DIS-5024T 24‑port Gigabit Ethernet + 2‑port mini GBIC Web‑Smart Switch. It covers unpacking, rack mounting, cable connections, power requirements, and identification of front‑ and rear‑panel components.
Detailed configuration chapters describe VLAN, QoS, security features, port mirroring, and monitoring tools such as the Statistics screen, allowing administrators to view and clear port counters and error statistics.
| Number of Ethernet ports | 24 |
|---|---|
| Supported Ethernet speeds | 10/100/1000 Mbps |
| Mini GBIC ports | 2 |
The DIS-5024T provides 24 Ethernet ports.
It supports 10 Mbps, 100 Mbps, and 1000 Mbps (Gigabit) Ethernet.
Use the Monitoring > Statistics screen, which shows packet counts for each port and allows you to clear counters.
Select the Clear Counter option on the Statistics screen to reset the details displayed.
