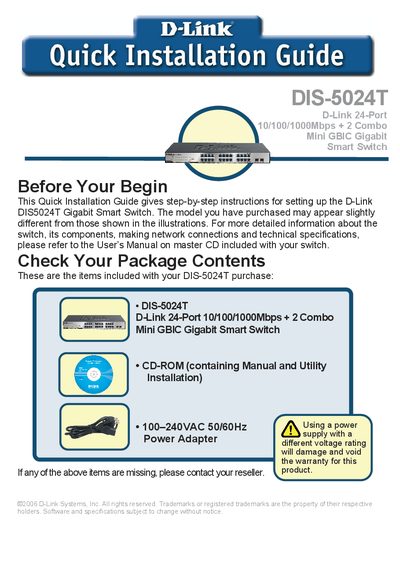

This document is a quick installation guide for the D-Link DIS5024T Gigabit Smart Switch, providing step-by-step instructions for setting up the switch. The document includes information about the switch's components, network connections, and technical specifications, and refers to the user's manual for more detailed information. Please check the package contents to ensure all items are included. This product is from the D-Link brand, with the model number DIS-5024T.
This Quick Installation Guide provides step‑by‑step instructions for setting up the D-Link DIS‑5024T Gigabit Smart Switch. It lists the items included in the package, recommended installation environment, rack‑mounting procedure, and power requirements.
The guide also explains how to connect network cables, interpret LED indicators, install the SmartConsole utility, and configure the switch via its web GUI or utility. Default IP settings, login credentials, and menu navigation are described to help users get the switch operational quickly.
| Number of Ethernet ports | 24 |
|---|---|
| Port speed | 10/100/1000 Mbps |
| Mini GBIC ports | 2 (optional) |
| Power input voltage | 100‑240 VAC, 50/60 Hz |
The switch can be used with an AC power supply of 100‑240 VAC at 50‑60 Hz.
It has 24 Gigabit twisted‑pair Ethernet ports.
The factory‑default IP address is 192.168.0.7.
The default password is "admin".
