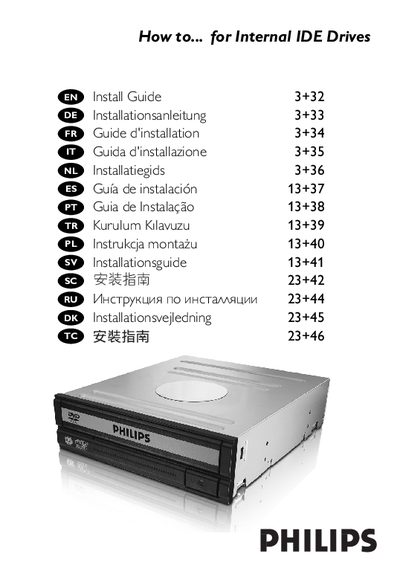

Philips Internal IDE Drive Installation Guide

About this manual

The guide walks you through preparing your computer, handling the drive safely, and connecting the necessary cables. It covers grounding, opening the case, removing the old drive (if any), and installing the new IDE drive.

After the physical installation, you set the jumper to Master or Slave, secure the drive with screws, reconnect power and data cables, and restart the computer. Safety notes about electrostatic discharge and laser components are also included.

What's inside

• Safety Precautions
• Preparing the Computer
• Connecting the IDE Cable
• Setting Master/Slave Jumper
• Securing the Drive
• Power Connection
• Restarting the Computer
• EMF Information
• Laser Safety

Specifications

Frequently asked questions

How can I prevent electrostatic discharge when handling the drive?

Touch an unpainted metal part (e.g., the computer case) before handling the drive to discharge static.

How do I set the drive as Master or Slave?

Select the appropriate jumper setting – Master or Slave – as described in the installation steps.

What cables are needed to connect the IDE drive?

You need an IDE data cable and a power cable; the guide shows examples of both.
