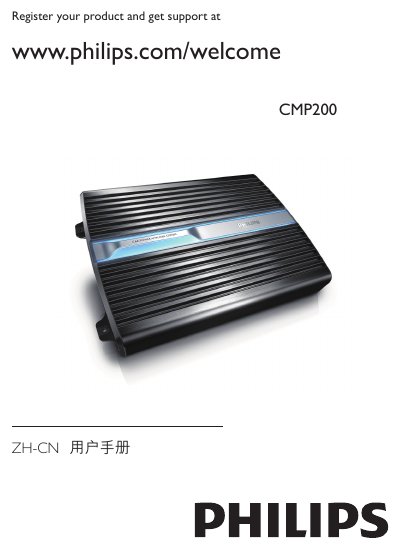

This user manual describes the use of the Philips CMP200 car power amplifier. The power amplifier provides powerful bass and beats for your car audio.
This manual introduces the Philips CMP200 car power amplifier, describing its features, safety warnings, and the items included in the package. It explains how to install the unit in a vehicle, connect speakers and the car audio system, and configure the high‑pass/low‑pass filters and bass boost.
The guide also covers power connections, protection indicator behavior, specifications, troubleshooting steps, and environmental compliance information. Detailed diagrams and tables help users set input levels, replace fuses, and ensure proper speaker impedance. This manual is written in Chinese.
| Power Output (RMS) | 4 Ω (bridge 2 Ω) |
|---|---|
| Total Harmonic Distortion | 0.01 % |
| Signal‑to‑Noise Ratio | 106 dB |
| Channel Separation | 50 dB |
| Frequency Response | 5 – 100 kHz |
| Input Sensitivity | 300 mV – 6 V |
| Input Impedance | 22 kΩ |
| Fuse Rating | 30 A (x2) |
| Dimensions (H × W × D) | 54.4 × 336.5 × 240.2 mm |
Use speakers with an impedance of 2 Ω to 8 Ω (4 Ω to 8 Ω when bridged) and match the left/right and +/‑ terminals correctly.
The red PROTECT indicator shows that the built‑in protection circuit has activated due to overheating, DC current, under/over‑voltage, or a speaker short, and the unit will shut down automatically.
Remove the blown fuse and replace it with a 30 A fuse (or the supplied spare) that matches the original specifications.
Rotate the INPUT LEVEL knob to set the input voltage between 0.3 V and 6 V.
