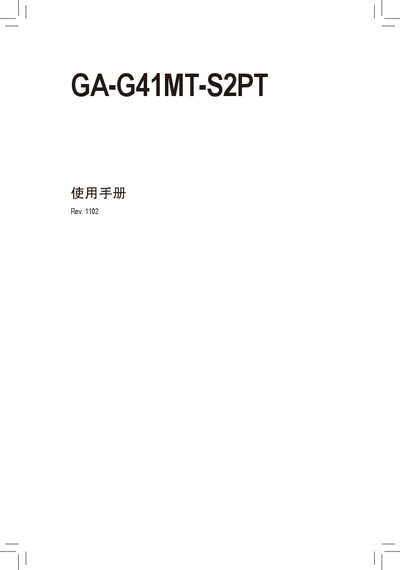

GA-G41MT-S2PT user manual, introduces the hardware installation, BIOS program settings and driver installation related information of the motherboard.
This manual provides step‑by‑step guidance for installing and configuring the Gigabyte GA‑G41MT‑S2PT motherboard. It covers hardware installation, CPU and memory mounting, expansion card fitting, and detailed descriptions of rear‑panel connectors and power connections.
The document also explains BIOS features, system monitoring tools, driver installation procedures, and warranty information, helping users set up the board safely and efficiently. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel G41 |
| Memory slots | 2 DDR3 DIMM slots, up to 8 GB |
| SATA ports | 4 × SATA 3 Gb/s |
| USB ports | Up to 8 USB 2.0/1.1 ports |
| PCI Express slots | 1 × PCIe x16, 1 × PCIe x1, 2 × PCI |
It uses an LGA775 socket for compatible Intel processors.
The board provides up to eight USB 2.0/1.1 ports (four on the rear panel and four via internal headers).
It supports up to 8 GB of DDR3 memory across its two DIMM slots.
The BIOS can be updated using the built‑in @BIOS online update utility or the Q‑Flash feature.
