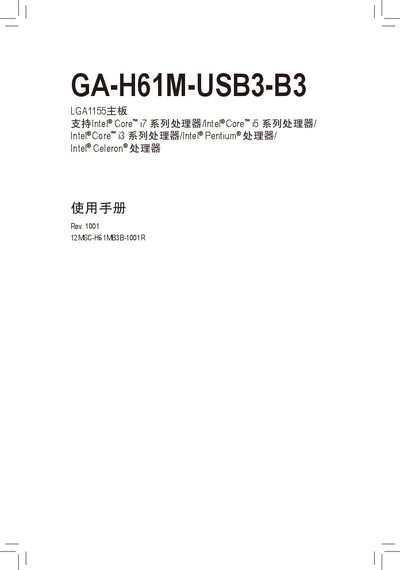

GA-H61M-USB3-B3 LGA1155 mainboard user manual, introduce the mainboard's hardware installation, BIOS program setting, driver program installation and other content
This manual covers all steps needed to install the GA-H61M-USB3-B3 motherboard, including safety precautions, CPU and memory installation, and connection of peripheral devices. Detailed diagrams of the rear I/O panel and internal connectors help users correctly attach cables and expansion cards.
The document also explains BIOS configuration options, power‑management features, and supported hardware such as Intel H61 chipset, DDR3 memory, USB 2.0/3.0 ports, SATA interfaces, and integrated audio/video components. Troubleshooting tips and warranty information are included at the end. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Form Factor | Micro‑ATX (24.4 cm × 20.5 cm) |
It uses an LGA1155 socket for Intel processors.
