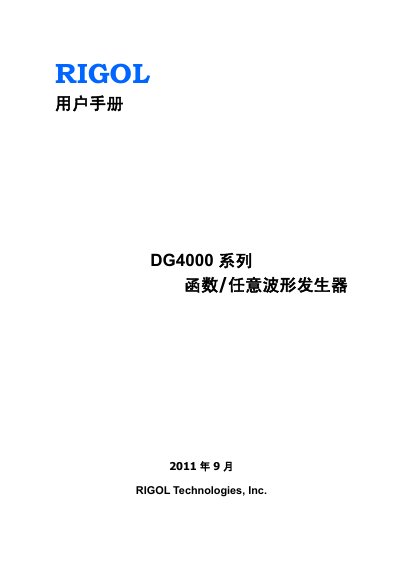

This document is the user manual for RIGOL DG4000 series function/arbitrary waveform generator, released in September 2011. The manual includes information about product warranty and declaration, safety requirements, safety terms and symbols, etc.
This manual covers safety requirements, proper ventilation, handling, and cleaning procedures for the DG4000 series function/arbitrary waveform generator. It also explains the instrument’s front‑panel controls, rear‑panel connectors, and remote‑control capabilities via LAN and USB.
Detailed sections describe the device’s performance specifications, such as maximum output frequency, sampling rate, and resolution, as well as troubleshooting, warranty information, and optional accessories. This manual is written in Chinese.
| Maximum Output Frequency | 160 MHz (DG4162 model) |
|---|---|
| Sampling Rate | 500 MSa/s |
| Vertical Resolution | 14 bits |
| Display | 7‑inch 16 M‑pixel TFT LCD |
| Power Input | 100‑240 V, 45‑440 Hz |
Turn off the power, then wipe the exterior with a slightly damp soft cloth; avoid liquids dripping onto the LCD screen.
Only use a power cord approved for the country of use that matches the instrument’s input rating of 100‑240 V, 45‑440 Hz.
No, the manual advises not to operate the instrument in a humid environment to avoid short circuits or electric shock.
Connect the LAN port to a network; the DG4000 complies with LXI‑C class standards and can be controlled via web interface or PC software.
