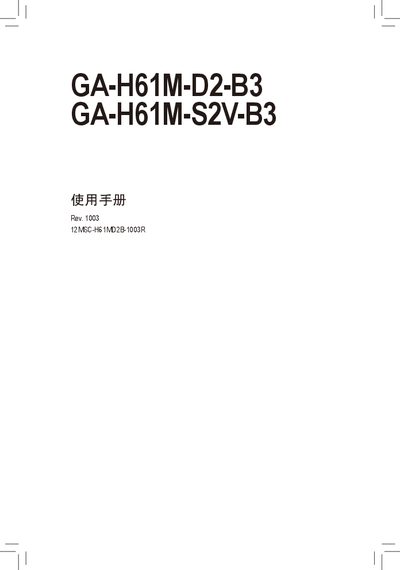

Gigabyte GA-H61M-D2-B3 / GA-H61M-S2V-B3 Motherboard User Manual

About this manual

This manual provides the hardware layout, connector descriptions, and BIOS configuration options for the Gigabyte GA-H61M-D2-B3 and GA-H61M-S2V-B3 motherboards. It includes detailed sections on PCI Express slots, memory support, SATA ports, USB interfaces, and audio codec details.

The document also contains the Declaration of Conformity for FCC, CE and LVD standards, safety information, and step‑by‑step instructions for BIOS features such as password setup, power management, and PC health monitoring.

What's inside

• Declaration of Conformity
• Hardware Layout
• Connector Overview
• BIOS Features
• Standard CMOS Features
• Advanced BIOS Features
• Integrated Peripherals
• Power Management Setup
• PC Health Status
• Password Configuration

Specifications

Frequently asked questions

What FCC classification does the motherboard have?

It complies with FCC Part 15, Subpart B, Class B Digital Device.

Which BIOS option allows password protection?

The BIOS includes a "Set Supervisor/User Password" feature.

What memory speeds are supported?

The motherboard supports DDR3 memory at 1333, 1066 and 800 MHz.
