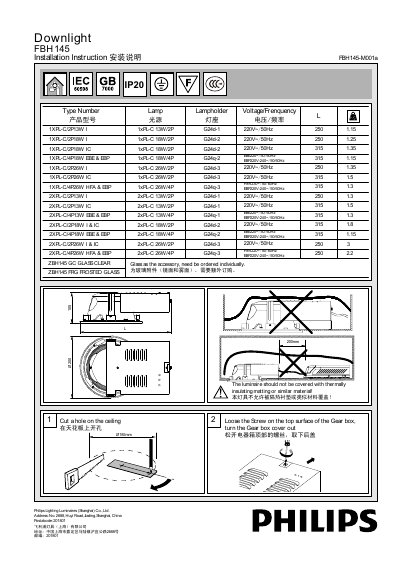

This manual introduces the installation instructions of Philips FBH145 series downlights
The manual provides step‑by‑step guidance for installing the Philips FBH145‑M001a downlight. It starts with preparing a ceiling opening, removing the top cover of the gear box, and routing the power cord through the grommet to the terminal block.
After wiring, the luminaire is placed into the ceiling hole, the support clips are rotated to secure it, and the reflector and lamp are fitted. The guide also includes safety reminders such as turning off power before maintenance and ensuring the fixture is installed by a qualified electrician. This manual is written in Chinese.
| Model | FBH145-M001a |
|---|---|
| IP Rating | IP20 |
| Voltage / Frequency | 220 V ~ 50 Hz |
| Lamp Type (example) | 1×PL‑C/2P 13 W |
No, the luminaire should not be covered with thermally insulating matting or similar material.
Yes, glass accessories such as clear or frosted glass must be ordered individually.
The power must be turned off before any maintenance or lamp replacement.
