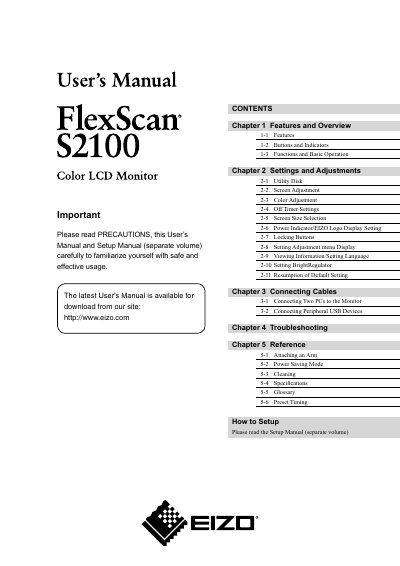

This user manual describes the features and functions of EIZO LCD monitors, and how to set and adjust the monitors.
This manual introduces the EIZO FlexScan S2100 color LCD monitor, describing its dual‑input DVI‑I/D‑sub connectors, adjustable stand, portrait/landscape modes and the ScreenManager Pro utility software. It also explains button functions, indicator lights and power‑saving features.
Detailed sections guide users through screen and color adjustments, BrightRegulator automatic brightness, off‑timer settings, USB peripheral connections, and how to reset the monitor to factory defaults. Safety and handling tips for the LCD panel are provided, along with a specifications table and glossary.
| Horizontal scan frequency (Analog) | 24‑80 kHz |
|---|---|
| Horizontal scan frequency (Digital) | 31‑76 kHz |
| Vertical scan frequency (Analog) | 49‑76 Hz (49‑61 Hz at 1600×1200) |
| Vertical scan frequency (Digital) | 59‑61 Hz (VGA text 69‑71 Hz) |
| Resolution | 1600 × 1200 |
| Effective pixel percentage | 99.9994 % or higher |
| Input connectors | DVI‑I and D‑sub mini 15‑pin |
| DVI digital input | TMDS compliant |
| Power indicator control | Can be turned off while screen is displayed |
| BrightRegulator | Automatic brightness adjustment |
Use the Power Indicator setting to turn the indicator off while the screen is active.
Select the Reset function in the Adjustment menu to restore all settings to factory defaults.
Enable the screen saver or set an off‑timer so the same image is not displayed for long periods.
