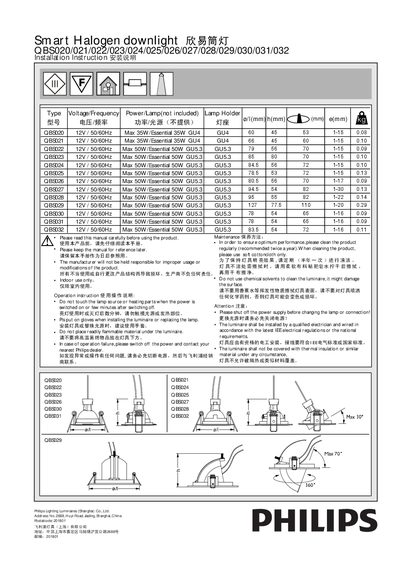

This document is the installation instruction of Philips QBS020/021/022/023/024/025/026/027/028/029/030/031/032 Smart Halogen downlight, It introduces the features and characteristics of the product, including power, voltage, frequency, size, etc.
This manual provides step‑by‑step installation instructions for the Philips QBS020‑QBS032 Smart Halogen Downlight series. It includes wiring diagrams, recommended transformer information, and safety precautions that must be followed by a qualified electrician.
Operational guidance, maintenance tips, and technical specifications such as voltage, lamp type, and dimensions are also covered. The document emphasizes indoor‑only use and proper handling of the luminaire to ensure optimal performance and safety. This manual is written in Chinese.
| Voltage / Frequency | 12 V / 50‑60 Hz |
|---|---|
| Maximum Power (GU4 models) | 35 W |
| Maximum Power (GU5.3 models) | 50 W |
| Lamp Base | GU4 or GU5.3 |
| Dimensions (example QBS020) | h 45 mm, e 1‑15 mm, Ø/l 60 mm |
| Recommended Transformer | Philips Electronic Transformer, 60 W |
| Minimum Wire Cross‑Section | 0.75 mm² |
| Maximum Total Wire Length Between Lampholders | 1.7 m |
A Philips Electronic Transformer with a power rating of 60 W is recommended.
The total length of wire between lampholder 1 and lampholder 3 must not exceed 1.7 m.
No, the luminaire is for indoor use only.
