This document is the installation instruction from Philips Lighting Luminaires (Shanghai) Co., Ltd., which provides the installation requirements and usage precautions for the CBX301 model luminaire.

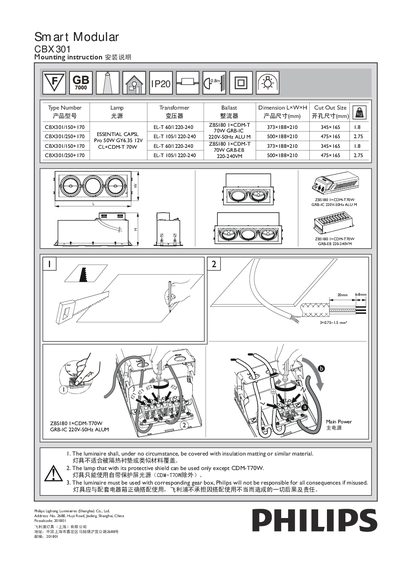

This manual provides the mounting instructions and safety precautions for the Philips CBX301 Smart Modular luminaire. It specifies that the fixture must not be covered with insulation matting or similar material and must be paired with the correct gear box.
Technical data for the two model variants are listed, including lamp type, voltage, power, overall dimensions and cut‑out size. Warranty terms and contact information for Philips Lighting offices in China are also included. This manual is written in Chinese.
| Model | CBX301150+170 |
|---|---|
| Lamp type | ELT 6011 |
| Voltage | 220‑240 V 50 Hz |
| Power | 70 W |
| Dimensions (L×W×H) | 373 × 188 × 210 mm |
| Cut‑out size | 345 × 165 mm |
| Model | CBX301250+170 |
| Lamp type | EL‑T 105/1 |
| Dimensions (L×W×H) | 500 × 188 × 210 mm |
| Cut‑out size | 475 × 165 mm |
