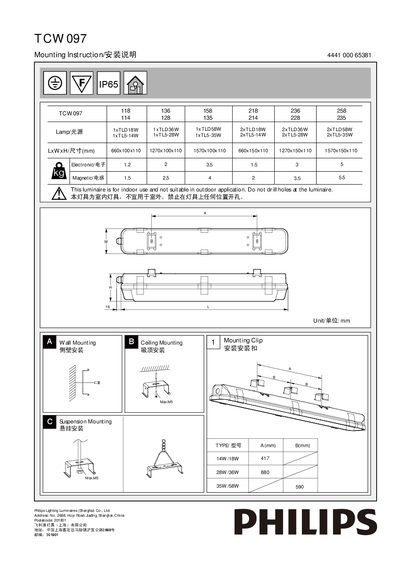

TCW097 Installation Instructions, including product model, specifications, installation methods, wiring methods and other contents.
The guide provides mounting instructions for the Philips TCW097 luminaire, including wall‑mount and ceiling‑mount options. It lists compatible lamp types (TLD18W, TLD36W, TLD58W, TL5‑14W, TL5‑28W, TL5‑35W) and gives the product dimensions for each size.
The manual details wiring steps such as inserting the mains cable, connecting to the terminal block, and securing the gear plate. It also describes safety‑rope installation, lamp replacement, and the required cable diameter (8‑12 mm). The luminaire is intended for indoor use only.
| Compatible lamps | 1x TLD18W, 1x TLD36W, 1x TLD58W, 2x TLD18W, 2x TLD36W, 2x TLD58W |
|---|---|
| Dimensions (mm) | 660 × 100 × 110 |
| Mounting options | Wall mounting, ceiling mounting |
| Cable diameter | 8‑12 mm |
| Indoor use only | Not suitable for outdoor application |
No, the luminaire is for indoor use only.
The TCW097 can be mounted on a wall or on a ceiling.
It supports TLD18W, TLD36W, TLD58W, TL5‑14W, TL5‑28W and TL5‑35W lamps.
Use a cable with a diameter of 8‑12 mm.
