Start here

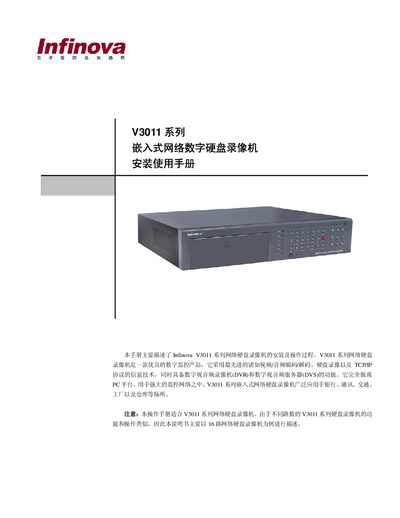

Infinova V3011 Series Embedded Network Digital Hard Disk DVR Installation and User Manual
The V3011 series embedded network digital hard‑disk DVR is a digital surveillance product designed for banks, telecom, traffic, factories, and warehouses. It integrates DVR and DVS functions, supports up to 16 video/audio channels, and operates independently of a PC platform.
This manual covers safety precautions, installation and connection procedures, system communication, configuration settings, network operation, and includes appendices with technical specifications, typical connection diagrams, troubleshooting, and quick‑reference tables. This manual is written in Chinese.
Infinova V3011 specifications
| Maximum video input channels | 16 |
|---|---|
| Supported video resolution per channel | Up to 4CIF (D1) |
| Video outputs | 1 BNC and 1 VGA |
| Audio inputs | 2 (1 line‑in, 1 auxiliary) |
| Maximum hard‑disk capacity | Up to 8 SATA disks (e.g., 8 × 400 GB) |
Source: Infinova V3011 Series Embedded Network Digital Hard Disk DVR Installation Guide
All Infinova V3011 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended operating temperature range for the DVR?
The DVR operates normally between –10 °C and 50 °C, and can be stored between –10 °C and 70 °C.
From: Infinova V3011 Series Embedded Network Digital Hard Disk DVR Installation Guide
How many video channels can the V3011 series support?
It can support up to 16 video channels (or 16 video loop‑back outputs).
From: Infinova V3011 Series Embedded Network Digital Hard Disk DVR Installation Guide
What is the recommended operating temperature range for the V3011 DVR?
The DVR operates correctly between -10 °C and 50 °C, and can be stored between -10 °C and 70 °C.
From: Infinova V3011 Series Embedded Network Digital Hard Disk DVR Installation and User Manual
How many video input channels does the V3011 support?
It supports up to 16 video input channels (or 16 video ring‑output channels with 2 audio inputs).
From: Infinova V3011 Series Embedded Network Digital Hard Disk DVR Installation and User Manual
