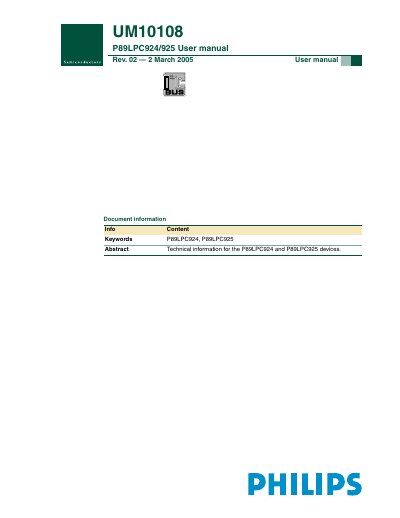

This user manual provides technical information for the P89LPC924/925 single-chip microcontrollers.
This manual introduces the P89LPC924/925 single‑chip microcontrollers, highlighting their high‑integration, low‑cost design and a CPU that executes instructions in two to four clock cycles, six times faster than standard 80C51 devices. It describes the architecture, special function registers, and the on‑chip peripherals such as ADC, DAC, comparators, and watchdog timer.
Detailed sections cover pin configurations for Ports 0, 1 and 3, memory organization, flash programming, in‑system and in‑application programming options, as well as power‑down and reset behavior. The document serves as a reference for developers implementing the devices in embedded applications.
