This document is a maintenance manual for a color television receiver, which mainly includes precautions, specifications and IC data, disassembly and assembly, alignment and adjustment, troubleshooting, exploded view and parts list, electrical parts list, block diagram, wiring diagram and schematic diagrams

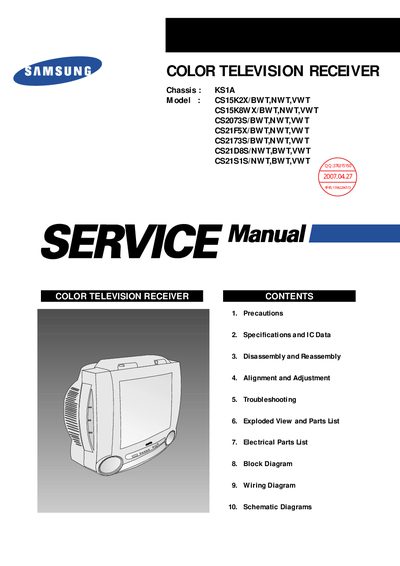

This service manual provides detailed information for Samsung CS series color television receivers, including models CS15K2X, CS15K8W, CS2073S, CS21F5X, CS2173S, CS21D8S, and CS21S1S. It contains specifications, IC data, disassembly/reassembly procedures, alignment and adjustment instructions, troubleshooting guides, and comprehensive diagrams.
The document also includes exploded views, parts lists, electrical parts lists, block diagrams, wiring diagrams, and schematic diagrams to assist service technicians in diagnosing and repairing the televisions.
| Television System | PAL, SECAM, NTSC |
|---|---|
| Power Requirements | AC 100~240V, 50/60Hz |
| Speaker Impedance | 8 Ω, 5W+5W (Dual Type) |
Press DISPLAY then FACTORY on the remote, followed by STAND‑BY, DISPLAY MENU, MUTE and POWER ON to display the SERVICE (FACTORY) message.
All adjustment data revert to initial values, so the data must be re‑programmed after the EEPROM is replaced; warm up the TV for 10 seconds before re‑programming.
The PVS, PVA, and PHS parameters must be aligned using the 50 Hz vertical‑field rates.
