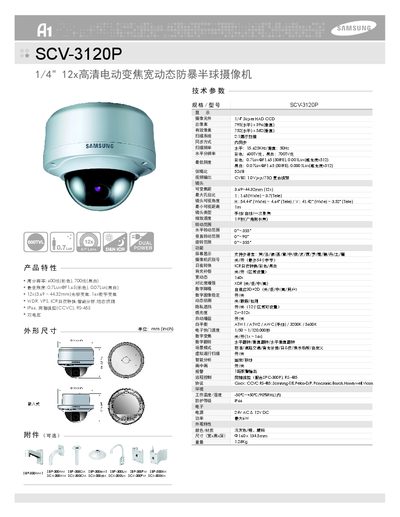

1/4-inch 12x high-definition electric zoom wide dynamic anti-riot dome camera SCV-3120P has high resolution, low illumination, 12x optical zoom, 16x digital zoom, WDR, VPS, ICR day and night conversion, intelligent analysis, dynamic detection, IP66, coaxial vision (CCVC), RS-485, dual voltage and other features.
The SCV-3120P is a 1/4" dome camera with 12× optical zoom (3.69 ~ 44.32 mm) and 16× digital zoom. It offers high‑resolution imaging with 600 lines in color and 700 lines in black‑white, and low illumination performance of 0.7 Lux (color) and 0.07 Lux (black‑white) at F1.65. Advanced features include Wide Dynamic Range (WDR), Video Processing System (VPS), ICR day/night conversion, intelligent analysis and dynamic detection.
The camera is built for harsh environments with an IP66 rating, operating temperature from –50 °C to +50 °C, and humidity up to 90 %RH. Power can be supplied via 24 V AC or 12 V DC (max 6 W). Physical dimensions are Φ160 × 134.5 mm and weight 1.28 kg, with pan range 0° ~ 355° and tilt range 0° ~ 90°. This manual is written in Chinese.
| Resolution (color/monochrome) | 600 lines (color), 700 lines (black & white) |
|---|---|
| Minimum illumination | 0.7 Lux (color) @ F1.65, 0.07 Lux (black‑white) |
| Optical zoom | 12× (3.69 ~ 44.32 mm) |
| Digital zoom | 16× |
| Wide Dynamic Range (WDR) | Enabled |
| Power supply | 24 V AC & 12 V DC, max 6 W |
| Dimensions / Weight | Φ160 × 134.5 mm, 1.28 kg |
| Pan/Tilt range | Pan 0° ~ 355°, Tilt 0° ~ 90° |
The camera provides 12× optical zoom covering a focal length from 3.69 mm to 44.32 mm.
The minimum illumination for color imaging is 0.7 Lux at an aperture of F1.65.
It can be powered by 24 V AC or 12 V DC, with a maximum consumption of 6 W.
