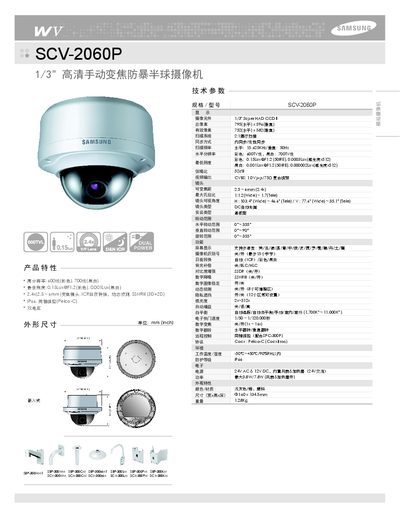

The SCV-2060P is a 1/3" high‑definition hand‑move zoom half‑ball camcorder designed for security and surveillance applications. It features a 2.4× optical zoom lens with a focal length of 2.5–6 mm, a Super HAD CCD sensor, and supports both color and black‑and‑white imaging with high line resolution (400 lines color, 700 lines B/W). The camera offers multiple video outputs, day/night switching, and digital image stabilization.
The device operates on 24 V AC or 12 V DC power, weighs 1.28 kg, and measures approximately 160 mm × 134.5 mm. It is rated for temperatures from –50 °C to +50 °C and supports a wide range of languages for on‑screen menus. Remote control and protocol options such as Pelco‑C are also provided. This manual is written in Chinese.
| Sensor Type | 1/3" Super HAD CCD |
|---|---|
| Horizontal Resolution (Color) | 400 lines |
| Horizontal Resolution (B/W) | 700 lines |
| Minimum Illumination (Color) | 0.15 Lux @ F1.2 |
| Optical Zoom | 2.4× (2.5–6 mm) |
| Video Output | CVBS 1.0 Vp‑p |
| Power Supply | 24 V AC / 12 V DC |
| Dimensions | 160 mm × 134.5 mm |
| Operating Temperature | -50 °C to +50 °C |
| Supported Languages | English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Danish, Turkish |
The camera needs a minimum illumination of 0.15 Lux at F1.2 for color operation.
It can be powered by either 24 V AC or 12 V DC.
The lens provides a 2.4× optical zoom with a focal length range of 2.5 mm to 6 mm.
It operates from –50 °C up to +50 °C.
