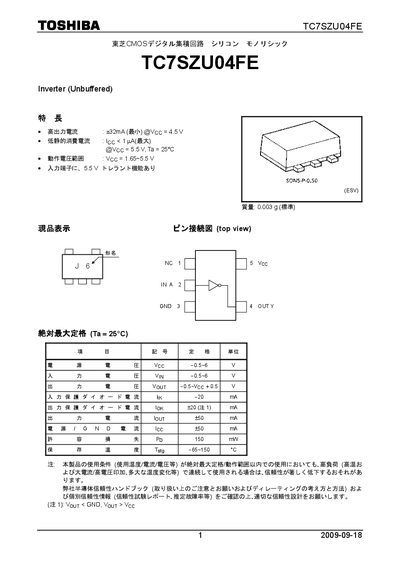

TC7SZU04FE is a high-performance, low-power CMOS digital integrated circuit produced by Toshiba. Its features include high output current, low static current, wide operating voltage range, etc. This device is suitable for the design of various digital circuits and can be widely used in electronic devices.
The TC7SZU04FE is a CMOS digital integrated circuit offered by Toshiba. It delivers a high output current of 32 mA at 4.5 V, features a very low static consumption current (<1 pA at 5.5 V), and operates over a wide supply range of 1.65‑5.5 V. The device includes input‑transient protection, defined pin assignments, and typical DC and AC performance data.
The document also contains handling guidelines, absolute maximum ratings, and warnings that the part is not intended for safety‑critical or specific high‑risk applications such as nuclear, aerospace, or medical equipment. Users are advised to follow Toshiba’s reliability handbooks and applicable environmental regulations when designing with this component. This manual is written in Japanese.
| High output current (minimum) | 32 mA @ Vcc=4.5 V |
|---|---|
| Static consumption current | <1 pA (max) @ Vcc=5.5 V |
| Operating voltage range | 1.65‑5.5 V |
| Input protection diode current | ±20 mA |
| Output current | 50 mA |
| Power dissipation | 150 mW |
| Storage temperature range | -65 °C to 150 °C |
| Package type | SON5‑P‑0.50 |
The device operates with a supply voltage (Vcc) from 1.65 V to 5.5 V.
Its static consumption current is less than 1 pA (maximum) when Vcc is 5.5 V.
No. The datasheet states the part is not intended for specific high‑risk uses such as nuclear, aerospace, medical, or other safety‑critical equipment.
It is supplied in a SON5‑P‑0.50 surface‑mount package.
