MT6L71FS is a silicon NPN transistor produced by Toshiba Corporation. It is mainly used in VHF-UHF frequency low phase noise scenarios, and is suitable for oscillators and buffers.

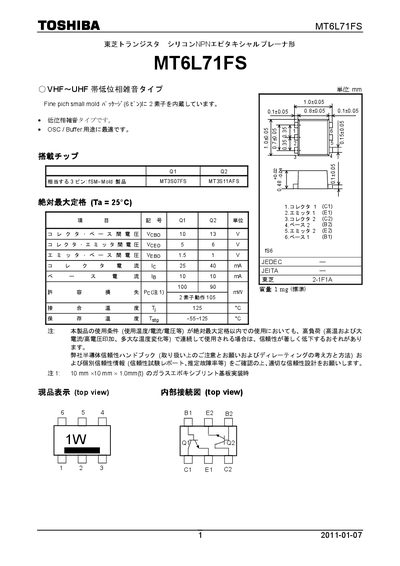

The MT6L71FS is a silicon NPN epitaxial planar transistor designed for low‑phase‑noise VHF/UHF applications such as OSC/buffer circuits. The document lists the device’s pin configuration, internal connection diagram, and recommended operating conditions.
Key electrical parameters include collector‑base voltage, collector‑emitter voltage, transition frequency, and noise figure, together with absolute maximum ratings and strict handling precautions to ensure reliability in typical electronic equipment. This manual is written in Japanese.
| Collector‑Base Voltage (VcB) | 10 V |
|---|---|
| Collector‑Emitter Voltage (VcE) | 5 V |
| Emitter‑Base Voltage (VEB) | 1.5 V |
The maximum collector‑emitter voltage is 5 V.
