The TLP628, TLP628-2 and TLP628-4 are high-isolation (AC 5 kVRMS.min) photocouplers with GaAs infrared LEDs and silicon phototransistors and are ideal for use in high-voltage or high-power applications.

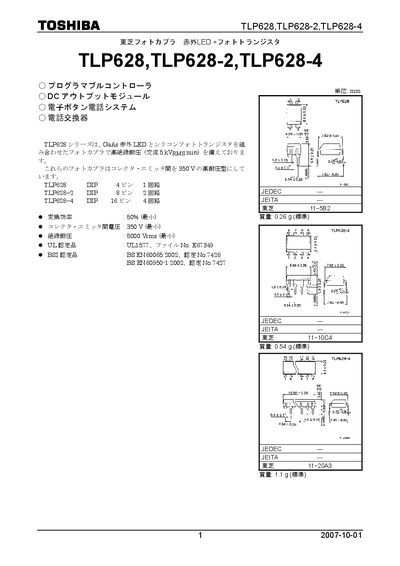

This datasheet provides detailed electrical characteristics, pin‑out diagrams, and absolute maximum ratings for the Toshiba TLP628 series optocoupler modules (TLP628, TLP628‑2, TLP628‑4). It includes information on isolation voltage, collector‑emitter voltage, recommended operating conditions, and switching performance.
The document also lists certification marks (UL1577, BS EN60065, BS EN60950‑1) and handling guidelines, making it a useful reference for designers integrating these components into industrial, automotive, or consumer electronic applications. This manual is written in Japanese.
