APC ACF126 ACF127 Installation Guide

This manual describes how to install the Air Duct Kit for Rack Air Flow Unit.

Brand: APC
Category: Air Cleaners Purifiers
Document type: Installation Guide
Language: Chinese
Pages: 4
File format: PDF
File size: 346 KB
Published: 04 February, 2012
Updated: 01 October, 2023
MD5 checksum: B46B3688CD21AE2F70324FF05020A53A
PDF: APC ACF126 ACF127 Installation Guide PDF

About this manual

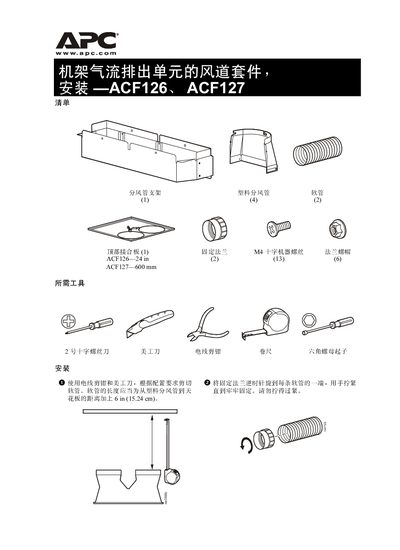

This guide provides a complete parts list and required tools for assembling the APC ACF126 and ACF127 airflow duct kits. It details step‑by‑step installation procedures, such as attaching the top flange, cutting and securing hoses, and mounting the duct brackets on the rack airflow distribution unit.

The document also includes APC customer support information, offering phone numbers, website links, and regional contacts for further assistance. This manual is written in Chinese.

What's inside

Parts List
Required Tools
Installation Procedure
Duct Kit Mounting
Support Information

Specifications

ACF127 length	600 mm
Top flange spacing	6 in (15.24 cm)

Frequently asked questions

What tools are needed to install the ACF126/ACF127 kits?

You need a #2 Phillips screwdriver, wire cutters, and a hex socket wrench.

Download PDF (346 KB)
