The TC74VCX162827FT is a low-voltage CMOS 20-bit bus buffer with 3.6 V tolerant inputs and outputs. It features low power consumption and high speed performance in 1.8 V, 2.5 V and 3.3 V systems.
The TC74VCX162827FT is a low‑voltage CMOS 20‑bit bus buffer with 3.6 V tolerant inputs and outputs. It features two independent 10‑bit buffers with three‑state control and built‑in protection diodes.

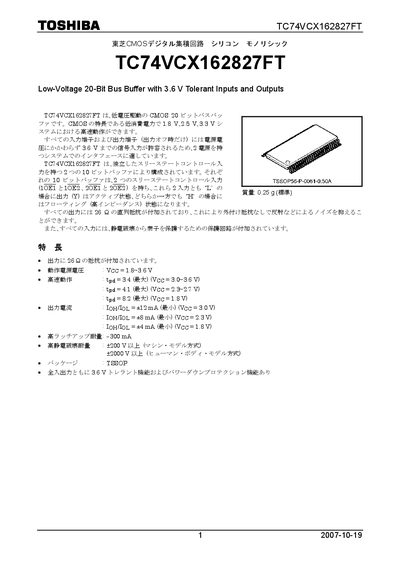

The document includes a pin‑connection diagram, truth tables, absolute maximum ratings, operating conditions, detailed DC and AC electrical characteristics, switching‑noise data, capacitance parameters, measurement circuits, package dimensions, and handling and safety information. This manual is written in Japanese.
| Supply voltage (absolute max) | -0.5 V – 4.6 V |
|---|---|
| Output resistance | 26 Ω |
| Output current (minimum) | 12 mA |
| Latch‑up current rating | 300 mA |
| ESD protection (machine model) | 200 V |
| Operating temperature range | -40 °C – 85 °C |
| Storage temperature range | -65 °C – 150 °C |
The part is rated for at least 200 V (machine‑model) and 2000 V (human‑body model) ESD protection.
It is specified for operation from –40 °C to 85 °C.
